Modeling and Analysis of Automotive Active Rear Wing
Use Matlab to model and Sim a car's rear wing with a GUI interface for tunable aspects, Use Solidworks for CAD, COMSOL for CFD analysis, a full modeling and simulation project
Project highlights
- 3D modeling in Matlab. Wing modeled with Bezier Surface.
- Created the Matlab user interactive GUI
- 3D modeling in CAD software tool (Solidworks)
- 2D CFD analysis of aerodynamics performance of the wing (COMSOL)
Matlab GUI

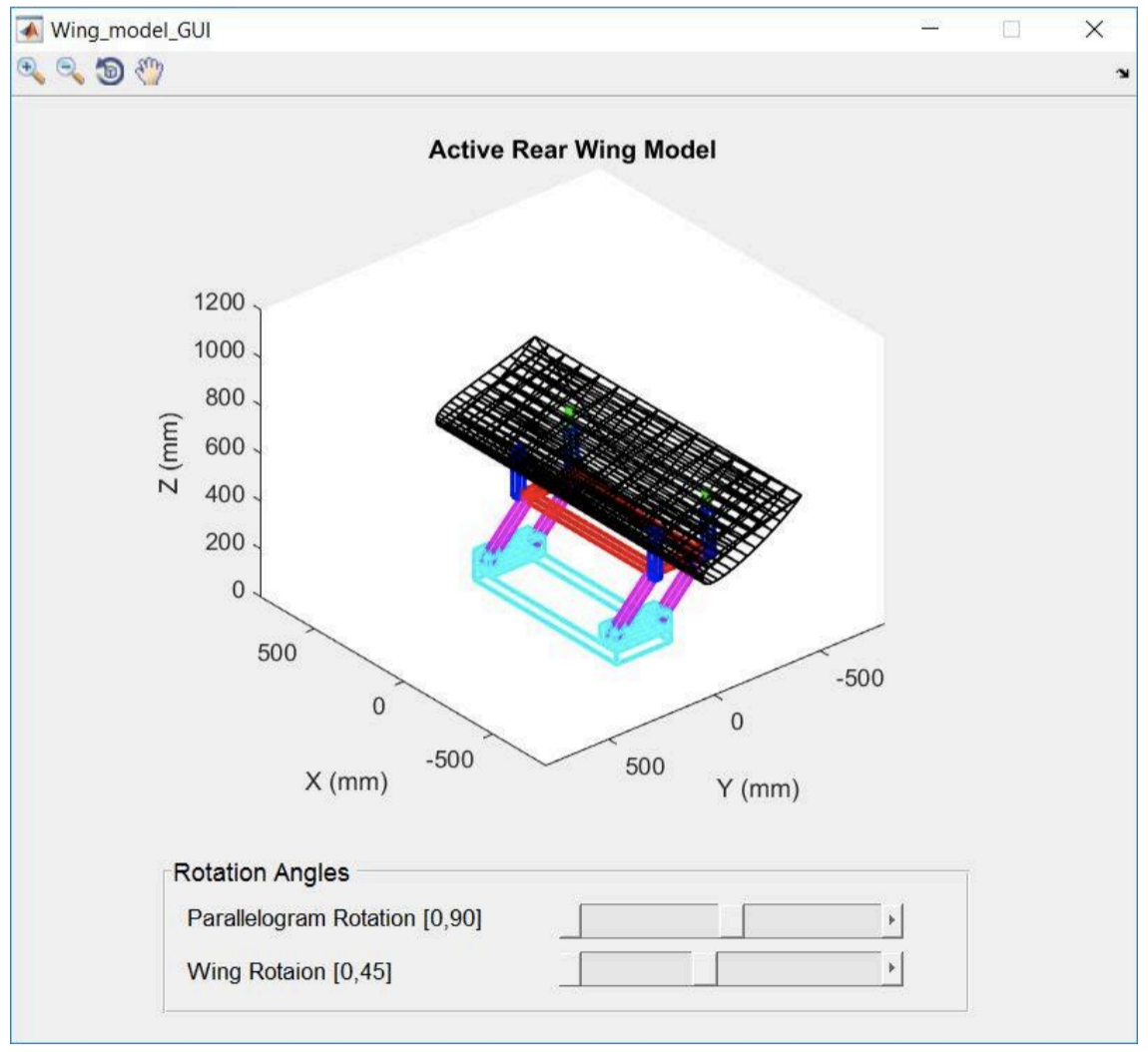

User can interactively change the parallelogram rotation angle and wing rotation angle.
Model CAD Animation Demo
